BUTT WELD FITTING

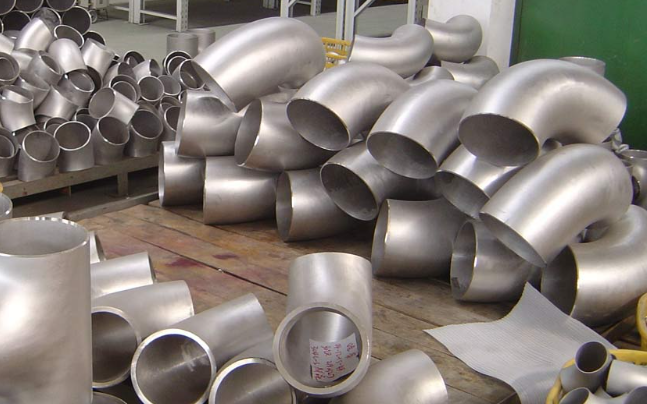

INDUSTRIAL BUTT WELD PIPE FITTINGS
Reliable Piping Connections for Oil & Gas, Marine, Offshore & Industrial Applications
NOWA BORNEO INTEGRATED SERVICES specializes in sourcing and supplying a comprehensive range of Butt Weld Pipe Fittings for the oil & gas, marine, offshore, petrochemical, shipbuilding, power generation, water treatment and industrial engineering sectors.
Our butt weld fittings are designed to provide strong, permanent welded connections in piping systems, supporting fluid transportation, pressure containment, changes in flow direction and pipe size transitions.
Through our network of local Malaysian and international suppliers, we provide reliable sourcing solutions for standard and project-specific piping requirements, with competitive pricing and dependable procurement support.
Our Product Range

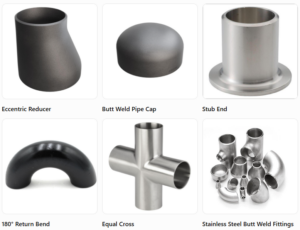

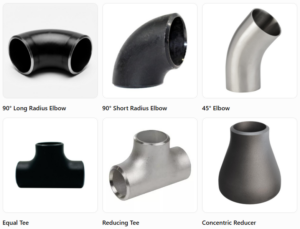

- 90° Long Radius Elbows (LR) – Used to change piping direction with a gradual bend.
- 90° Short Radius Elbows (SR) – Suitable for piping systems with limited installation space.
- 45° Elbows – Provide gradual directional changes in industrial piping systems.
- 180° Return Bends – Used to reverse flow direction in piping and heat exchanger applications.
- Equal Tees – Connect three pipes of the same nominal diameter.
- Reducing Tees – Connect piping branches of different nominal diameters.
- Concentric Reducers – Connect different pipe sizes while maintaining a common centerline.
- Eccentric Reducers – Used where an offset centerline is required, including selected pump suction arrangements.
- Pipe Caps – Provide permanent welded closure at pipeline ends.
- Stub Ends – Used with lap joint flanges for piping connections requiring easier dismantling.
- Cross Fittings – Four-way connections for specified piping arrangements.
- Custom Butt Weld Fittings – Special dimensions, materials and configurations upon request.
Available Materials
- Carbon Steel – ASTM A234 WPB
- Stainless Steel – ASTM A403 WP304 / WP304L / WP316 / WP316L
- Low Temperature Carbon Steel – ASTM A420 WPL6
- Alloy Steel – ASTM A234 WP11 / WP22
- Duplex & Super Duplex Stainless Steel
- Other Special Alloys Upon Request
Standards & Specifications
We source butt weld fittings according to customer requirements and applicable international standards, including:
- ASME B16.9 – Factory-made wrought butt welding fittings
- ASME B16.28 – Wrought steel short radius elbows and returns
- MSS SP-43 – Wrought stainless steel butt welding fittings
- ASTM A234 – Carbon and alloy steel piping fittings
- ASTM A403 – Wrought austenitic stainless steel piping fittings
- ASTM A420 – Carbon and alloy steel fittings for low-temperature service
- EN / DIN / JIS – Other applicable piping specifications
Available Sizes: From small-bore piping to large-diameter industrial piping, subject to manufacturer availability.
Wall Thickness: SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, STD, XS and XXS, depending on material and nominal pipe size.
Material Test Certificates (MTC), EN 10204 3.1 documentation and inspection reports can be arranged upon request, subject to supplier and manufacturer availability.
Industrial Applications
Our butt weld pipe fittings support:
- Oil & gas pipelines and processing facilities
- Offshore platforms and marine piping systems
- Shipbuilding and vessel maintenance
- Petrochemical plants and refineries
- Power generation facilities
- Industrial cooling water systems
- Chemical processing plants
- Water treatment and utility piping
- Mechanical and industrial engineering projects
Why Choose NOWA BORNEO INTEGRATED SERVICES?
We understand the importance of reliable piping components in maintaining safe, efficient and continuous industrial operations.
NOWA provides sourcing and procurement support for standard butt weld fittings, specialized materials, replacement components and bulk project requirements.
We are committed to providing competitive pricing, responsive customer service, material specification matching and coordinated delivery to customer facilities, industrial sites, ports and vessels.
Our Supply Coverage
Sabah | Sarawak | Labuan | Peninsular Malaysia | Brunei | Worldwide Shipping
Whether you require carbon steel elbows, stainless steel tees, concentric reducers, eccentric reducers or complete piping material packages, NOWA is ready to support your procurement needs.
Contact Us for Quotations & Enquiries
NOWA BORNEO INTEGRATED SERVICES
Email: [email protected]
Your Trusted Partner in Marine, Oil & Gas and Industrial Supply Solutions.

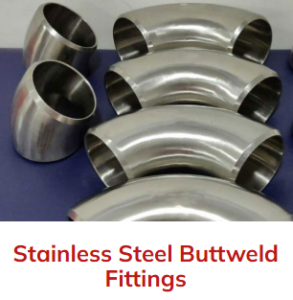

Specification of Stainless Steel Buttweld Fittings
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Grades | 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L |

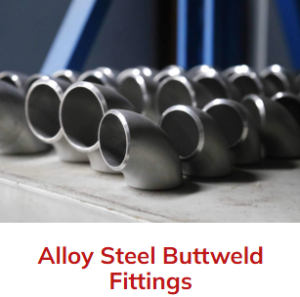

Specification of Alloy Steel Buttweld Fittings
| Specifications | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Grades | 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L |

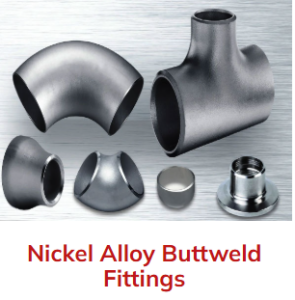

Specification of Nickel Alloy Buttweld Fittings
| Specifications | ASTM B366 / ASME SB366 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Grades | 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L |

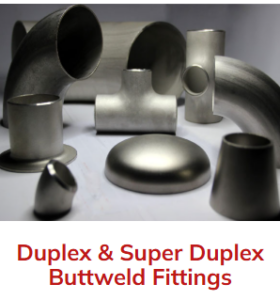

Specification of Duplex Steel Buttweld Fittings
| Specifications | ASTM A815 / ASME SA815 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Grades | 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L |
